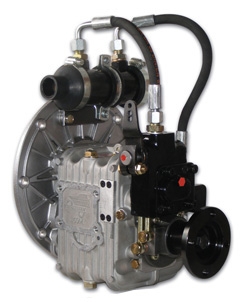

H60

Hydraulic Gearbox
Vertical Reduction Hydraulic Marine Gearbox

Maximum Power: 63 Hp (47 Kw)
Reverse reduction marine transmission with hydraulically actuated multi-disc clutches.
Suitable for high performance applications and pleasure duty conditions in fishing and tour boats.
Soft gear lever which provides controlling facility with spiral.
Fully works tested,reliable and simple to install.
In case of proper usage according to safety usage conditions, proper engine, shaft, propeller selection and errorless assembling occured has 2 years warranty.
Design and manufacturing activities of all BAYSAN's products comply with ISO 9001:2008.

Technical Details

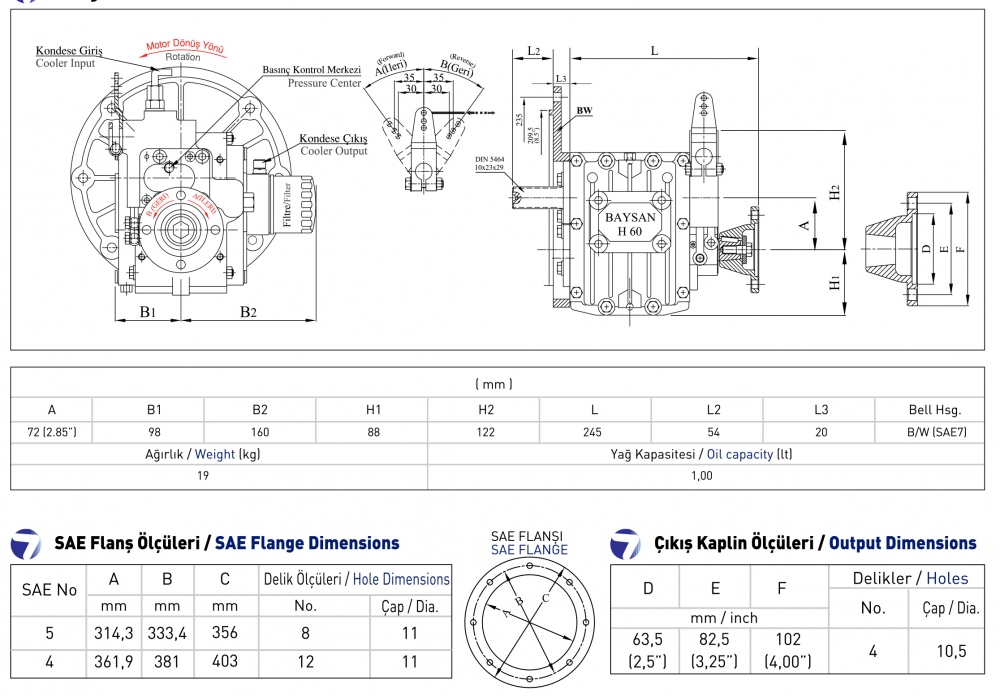

Dimensions

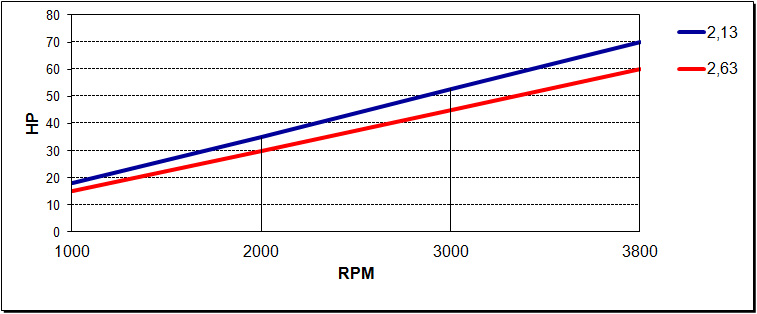

Pleasure Duty

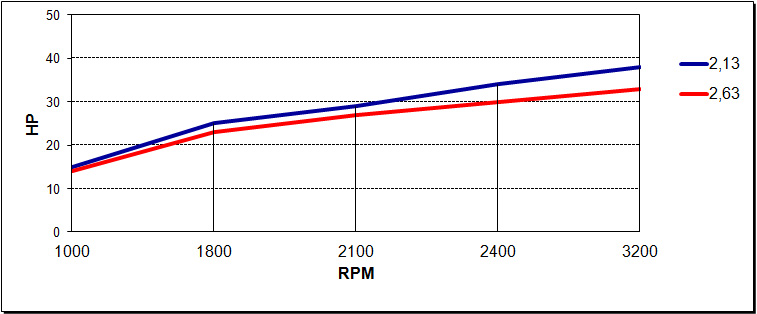

Heavy Duty

Files

Maximum input power limit

Pleasure duty - 63 Hp (47Kw)

Heavy Duty - 50 Hp (37 Kw)

Maximum input rpm limit

4000 RPM.

Reduction ratio

Standard : forward 2,13:1, reverse 1,95:1 Optionel : forward 2,63:1

Oil type

SAE 20W50/75W90

Oil capacity

1 lt. Plus reqired amount to fill the cooling unit.

Weight without flange

17 kg.

Standard rotation

In gear lever position (A),(Ref.dimensions) engine shaft and the propeller rotate in opposite directions,in position (B) in the same directions.

RATIOS			MAX. TORQUE	POWER		MAX. POWER						MAX. RPM
	(A) Pos.	(B) Pos.	Nm	Kw	Hp	Kw	Hp	Kw	Hp	Kw	Hp	MAX. RPM
						2800 rpm		3000 rpm		3600 rpm
	2,13	1,95	125	1,3	1,8	37	49	39	53	47	63	4000
	2,63	1,95	106	1,15	1,5	31	42	33	45	40	54	4000
Max. Input Power 47 kW

RATIOS			MAX. TORQUE	POWER		MAX. POWER						MAX. RPM
	(A) Pos.	(B) Pos.	Nm	Kw	Hp	Kw	Hp	Kw	Hp	Kw	Hp	MAX. RPM
						2800 rpm		3000 rpm		3600 rpm
	2,13	1,95	97	1,04	1,4	29	39	31	42	37	50	3600
	2,63	1,95	87	0,93	1,3	26	35	27	37	33	45	3600
Max. Input Power 37 kW
